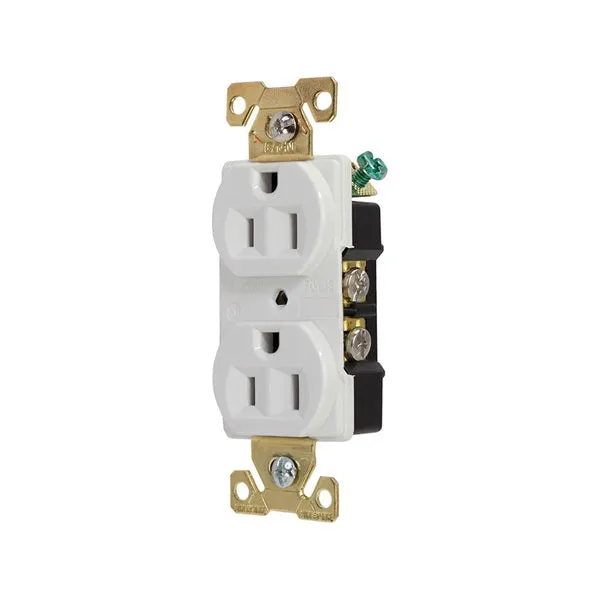

Industrial Specification Grade Straight Blade Receptacles - 15 A-125 V, NEMA 5-15R. Designed from the inside out, these receptacles meet and exceed the UL 498 and Federal Specification WC-596 standards to withstand the most abusive environments and excel in applications that demand the highest levels of performance.
Product Details
Manufacturer:
Manufacturer's Part Number: AH5252W
Show me more
Product Features
- High-impact- and chemical-resistant nylon face
- Screw-Catch™ feature on duplex devices speeds mounting of wallplates
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Exclusive 5-leaf, solid brass line contacts ensure smooth plug blade insertion and long-term retention
- Tapered lead in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Exclusive 0.03 in solid brass, non riveted, integral one-piece grounding shunt system assures ground integrity under heaviest use
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
Product Specifications
| Color | White |
| Current Rating | 15 A |
| Dimensions | 4.2 in L x 1.3 in W x 0.88 in D |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -20 to 70 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back, Side |
Product Documents
| Specification Sheet |
