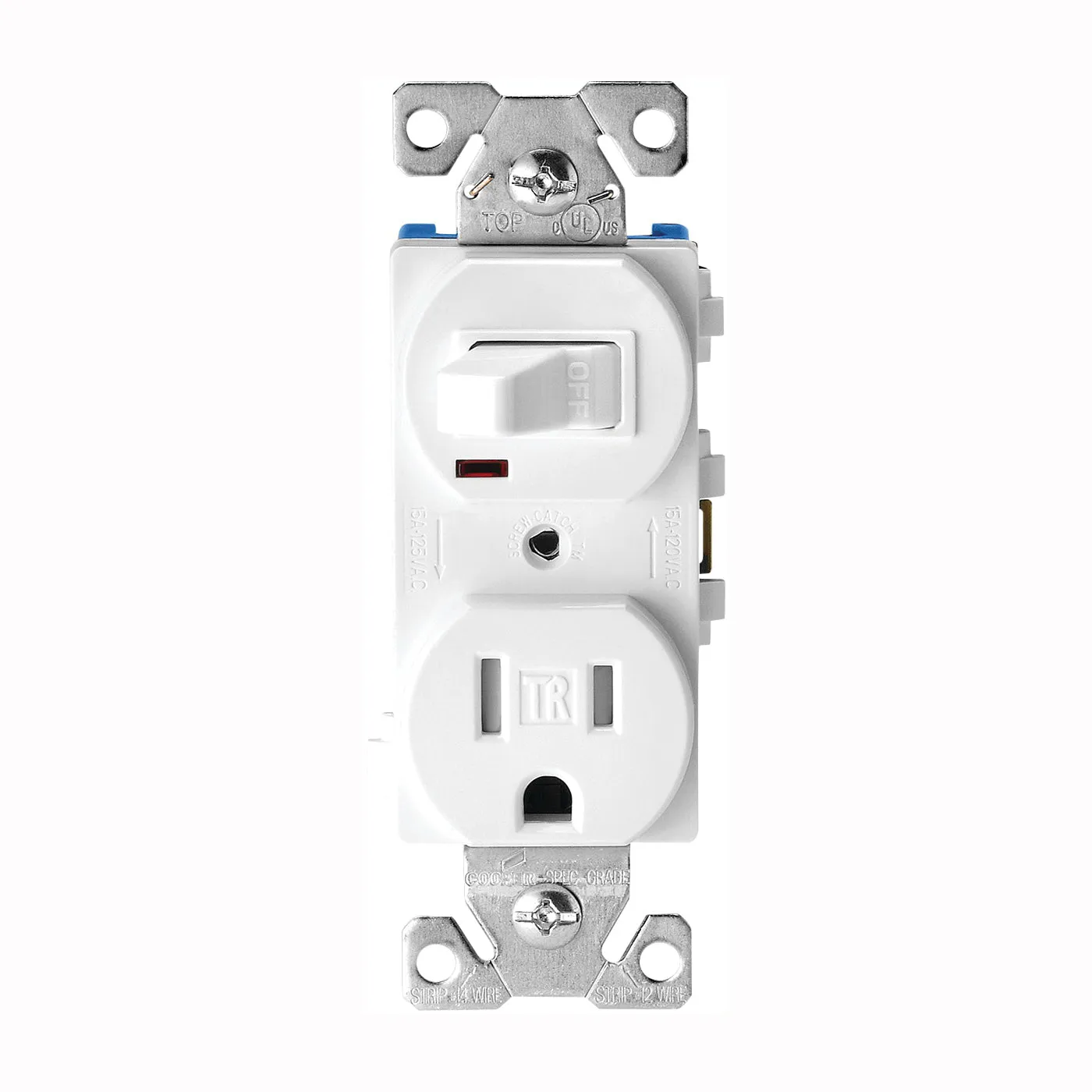

Traditional heavy-duty-grade combination switch with receptacle features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is On when switch is On. Switch is horsepower-rated for motor loads per UL 20. Thermoplastic toggle, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
Product Details
Manufacturer:
Manufacturer's Part Number: TR274W
Show me more
Product Features
- Convenient patented built-in wire stripper speeds installation
- Steel mounting strap is zinc-plated for added corrosion resistance
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break-off provision for wiring both devices on the same circuit or on separate circuits
- Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
Product Specifications
| Color | White |
| Contact Material | Brass |
| Current Rating | 15 A |
| Dielectric Strength | 2000 V |
| Dimensions | 1.08 in D x 4.19 in H |
| Material | PVC |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -20 to 60 deg C |
| Terminal Type | Screw |
| Type | Heavy-Duty |
| Voltage Rating | 120 V Switch, 125 V Receptacle |
| Wire Size | 14 to 12 AWG |
| Wiring Type | Back and Side |
