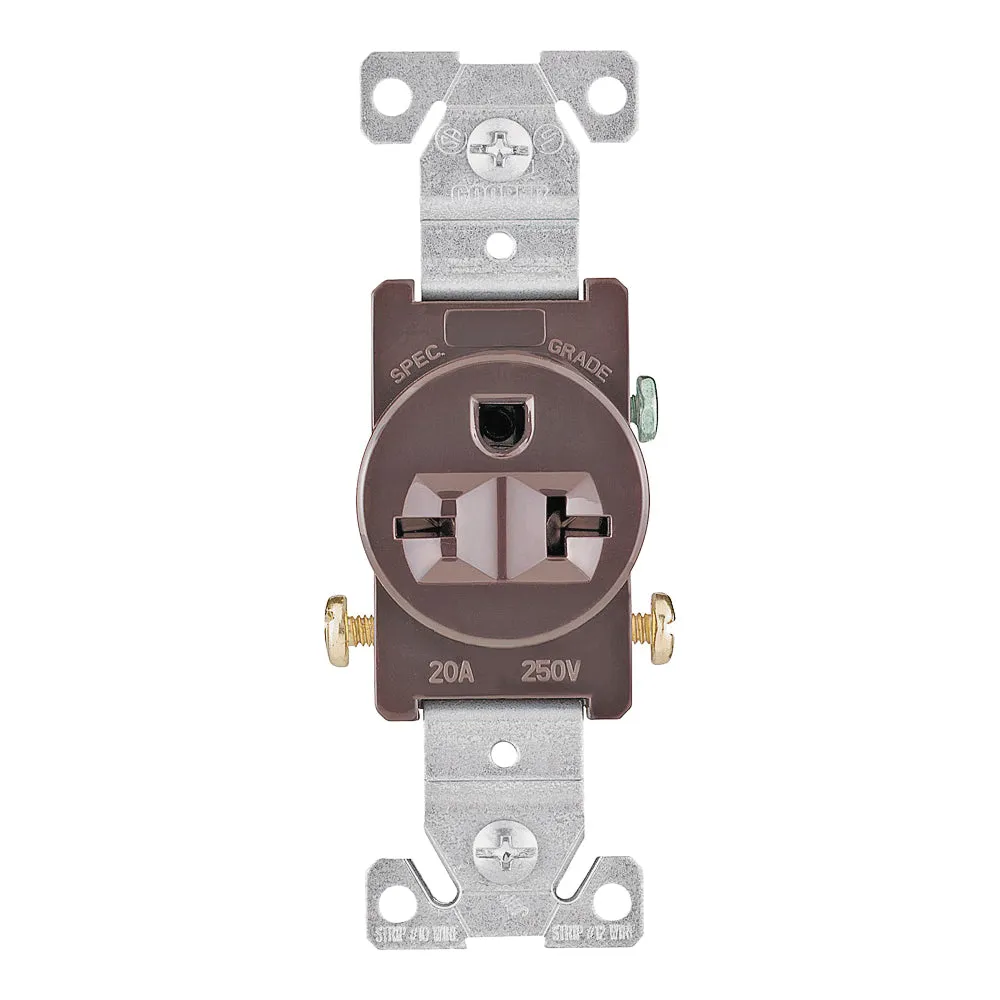

Straight blade receptacle. Meets all UL and CSA specifications. Triple wire line contacts provide excellent long-term plug retention. High impact and chemical-resistant nylon face. Side wire terminals accept up to #10 solid or stranded wire. Terminal screws backed out. 20 A, 250 V.
Product Details
Manufacturer:
Manufacturer's Part Number: 1876B-BOX
Show me more
Product Features
- Screw catch feature on duplex devices speeds mounting of wallplates
- Extra length or width helps reach large panel cutouts for code compliance
- Galvanized steel, wraparound yoke mounting strap for excellent assembly security
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
Product Specifications
| Color | Brown |
| Current Rating | 20 A |
| Dimensions | 3.28 in L x 1.31 in W x 0.83 in D |
| Material | Nylon |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 6-20R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -4 to 140 deg F |
| Voltage Rating | 250 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Side |
Product Documents
| Specification Sheet |
