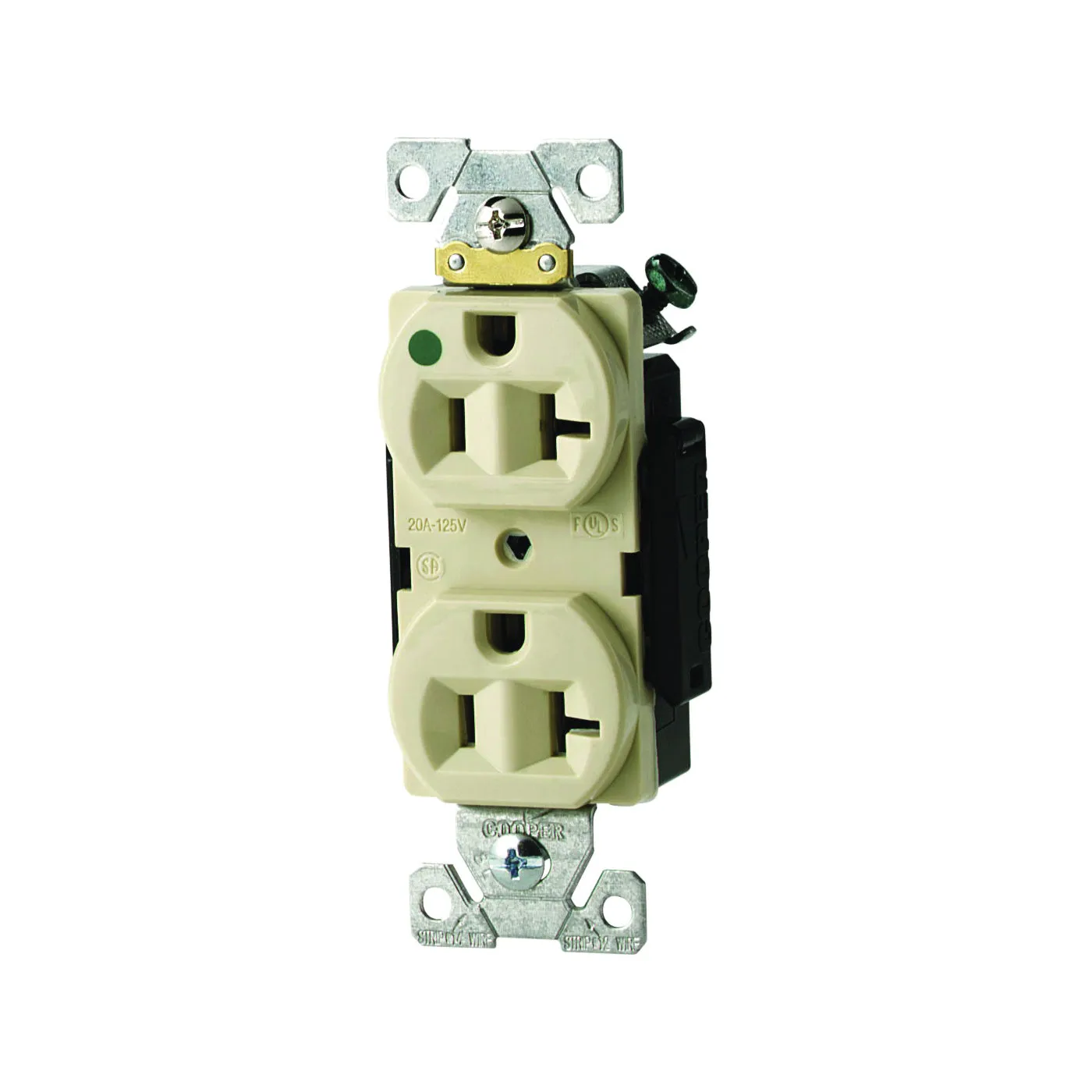

Hospital specification-grade straight blade receptacles - premium back wire & side wire. Arrow Hart's feature rich line of hospital-grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical.
Product Details
Manufacturer:
Manufacturer's Part Number: AH8300V
Show me more
Product Features
- High impact-and chemical-resistant nylon face
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
- Exclusive 5-leaf solid brass line contacts ensure smooth plug blade insertion and long-term retention
- Solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability
- Tapered back wiring lead in slots assist in gathering stranded wires for faster, more secure connections
- Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier
- All terminal and mounting screws are plated, triple combination (Slot/Phillips/Robertson) head for great corrosion resistance and maximum flexibility
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
Product Specifications
| Color | Ivory |
| Current Rating | 20 A |
| Dimensions | 4.19 in L x 1.30 in W x 0.88 in D |
| Frequency Rating | 60 Hz |
| Material | Brass |
| Mounting Type | Wall |
| NEMA Configuration | 5-20R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -20 to 70 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back, Side |
Product Documents
| Catalog | |
| Specification Sheet |
