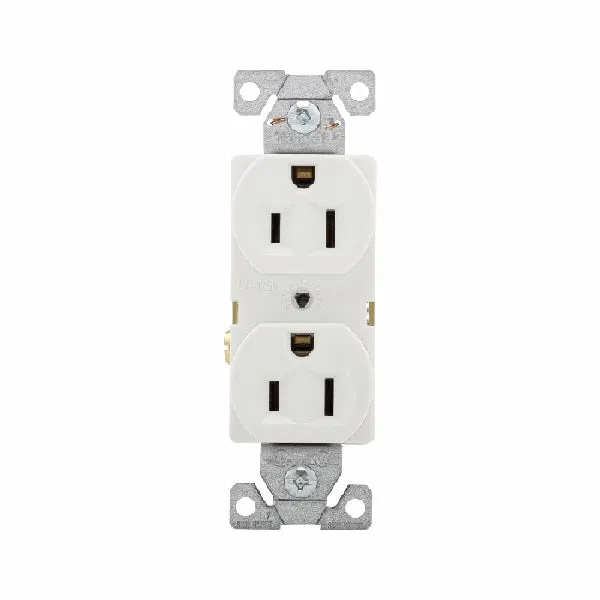

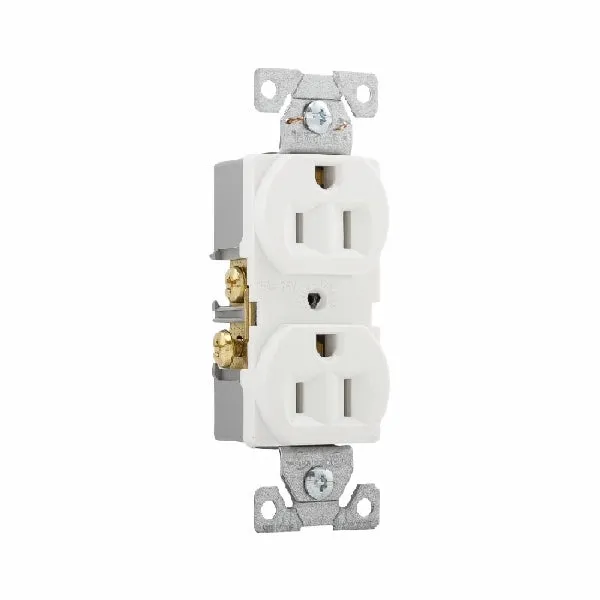

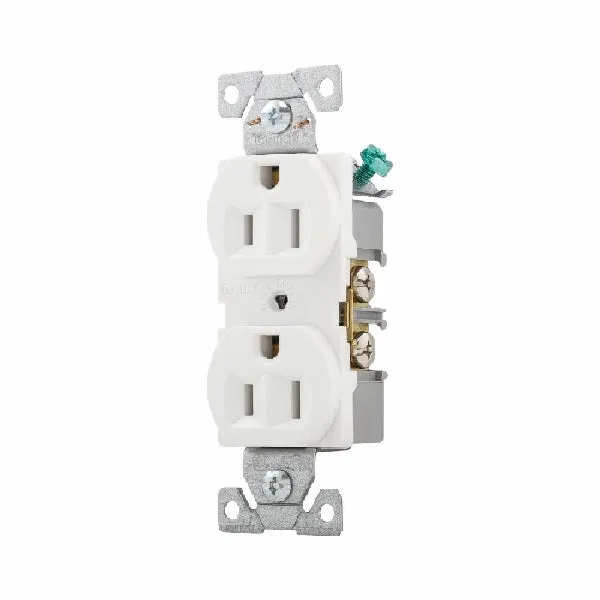

Commercial-grade straight blade receptacles 15 A, 125 V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
Product Details
Manufacturer:
Manufacturer's Part Number: BR15W
Show me more
Product Features
- Screw-catch feature on duplex devices speeds mounting of wallplates
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length, width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Tamper-resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
Product Specifications
| Color | White |
| Current Rating | 15 A |
| Dimensions | 1.3 in L x 0.88 in W x 4.2 in H |
| Material | Nylon/PVC |
| Mounting Type | Flush |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Operating Temperature | -4 to 140 deg F |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back, Side |
