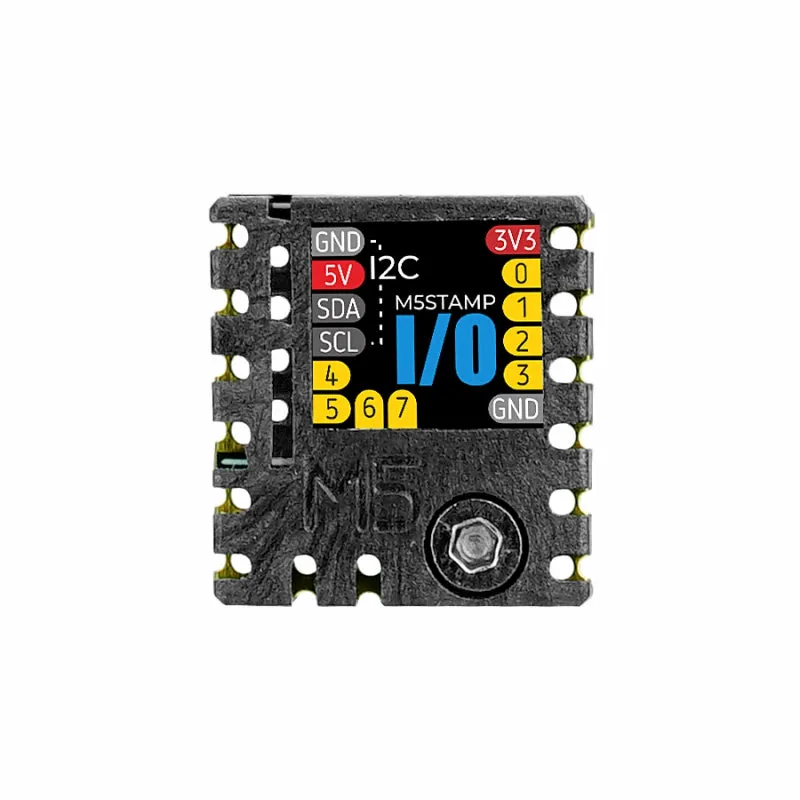

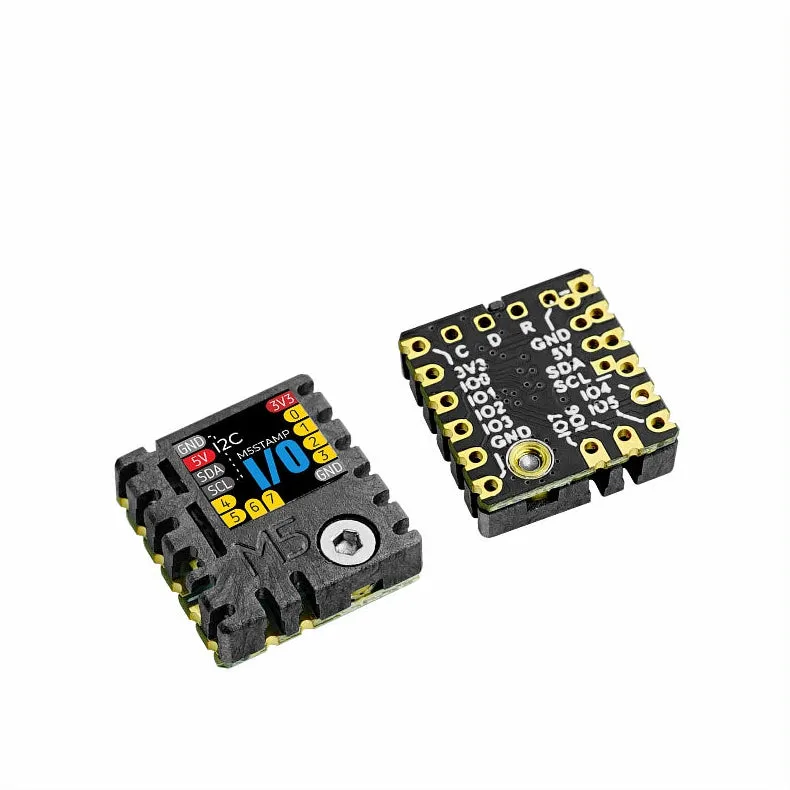

STAMP IO is an IO expansion board based on STM32F030 main controller, using I2C communication interface, providing 8 IO expansion.
Each IO supports independent configuration of digital input/output, ADC, SERVO control, RGB LED control modes. Suitable for multi-channel digital/analog signal acquisition, and lighting/servo control applications.
Features
- 8-channel input and output expansion.
- Digital input/output
- ADC input
- SERVO control (PWM)
- RGB LED control
- I2C communication interface:
- Supports configuration of I2C address
- Multiple soldering options
- Three types soldering options are available (SMT, DIP, Jumper wire),

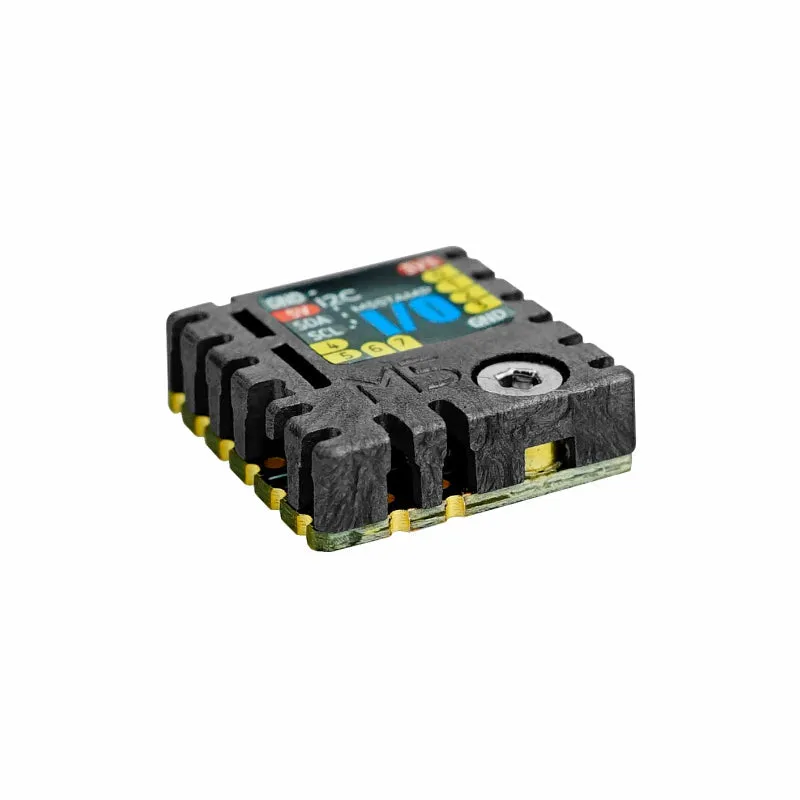

- With high-temperature resistant plastic enclosure, Peak temperature = 230℃

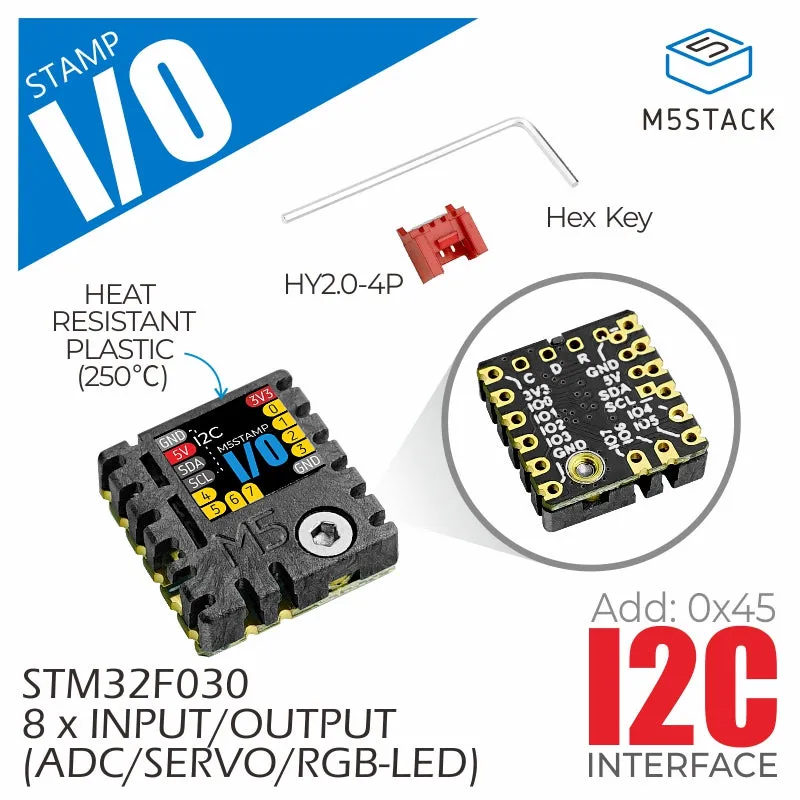

Included
- 1x STAMP IO

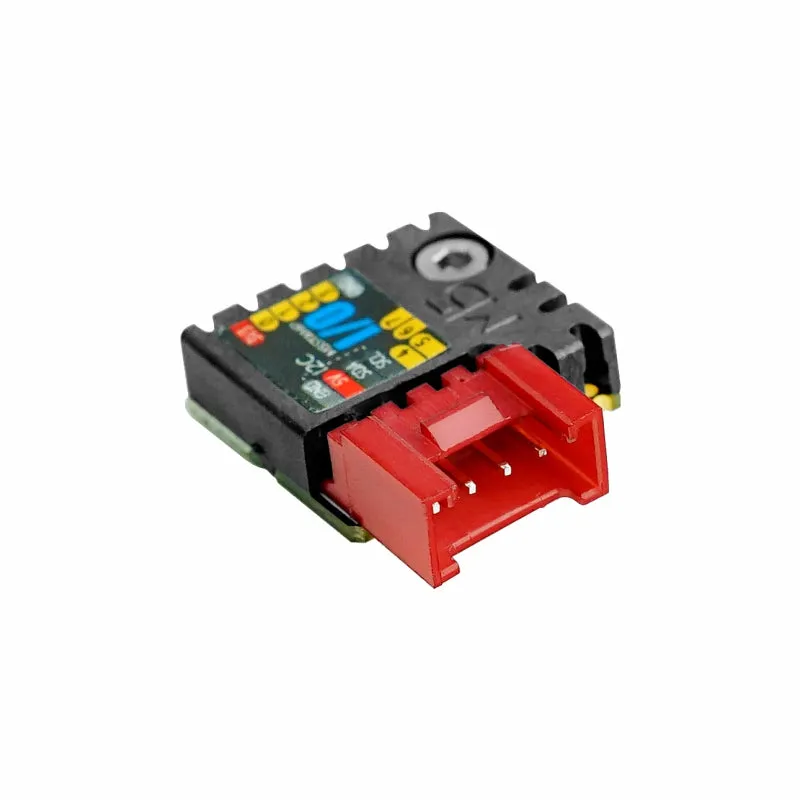

- 1x HY2.0-4P female connector (red)
- 1x Hex key 1.5mm
Applications
- IO Expansion
- Servo control
- Multiple lighting control
- Multiple analog signal acquisition
Applications
- IO Expansion
- Servo control
- Multiple lighting control
- Multiple analog signal acquisition
Specifications
| Specification | Parameters |
|---|---|

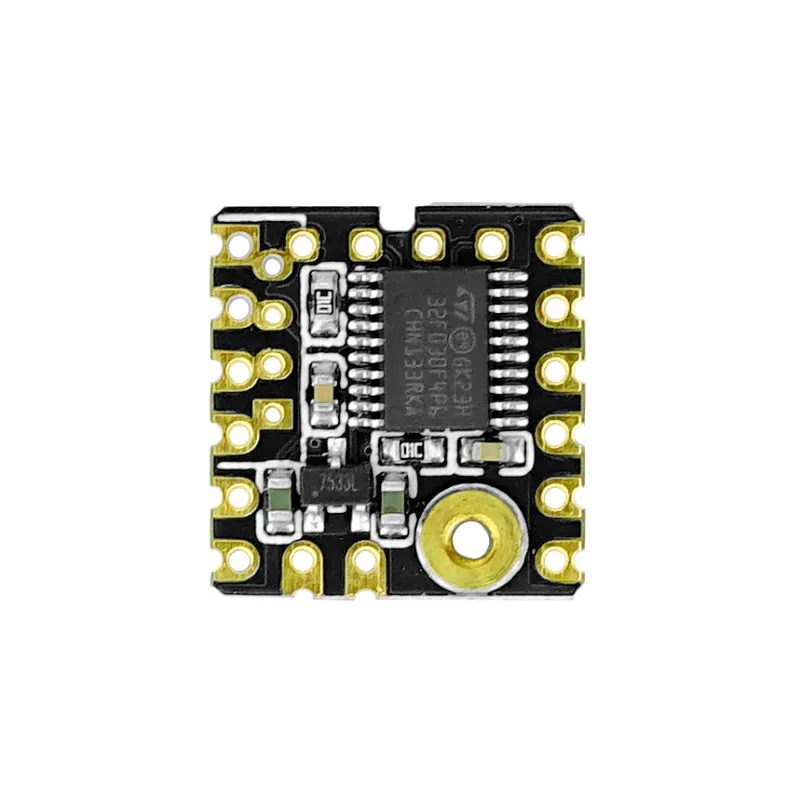

| MCU | STM32F030 |
| I2C Address | 0x45(default) |
| Number of IO expansions | 8 |
| IO Support Mode | Digital I/O, ADC, SERVO control, RGB LED control |
| IO Support Input/Output Levels | 3.3V |
| Net Weight | 2.5g |
| Gross Weight | 4.3g |
| Product Size | 15 x 4.7 x 16mm |

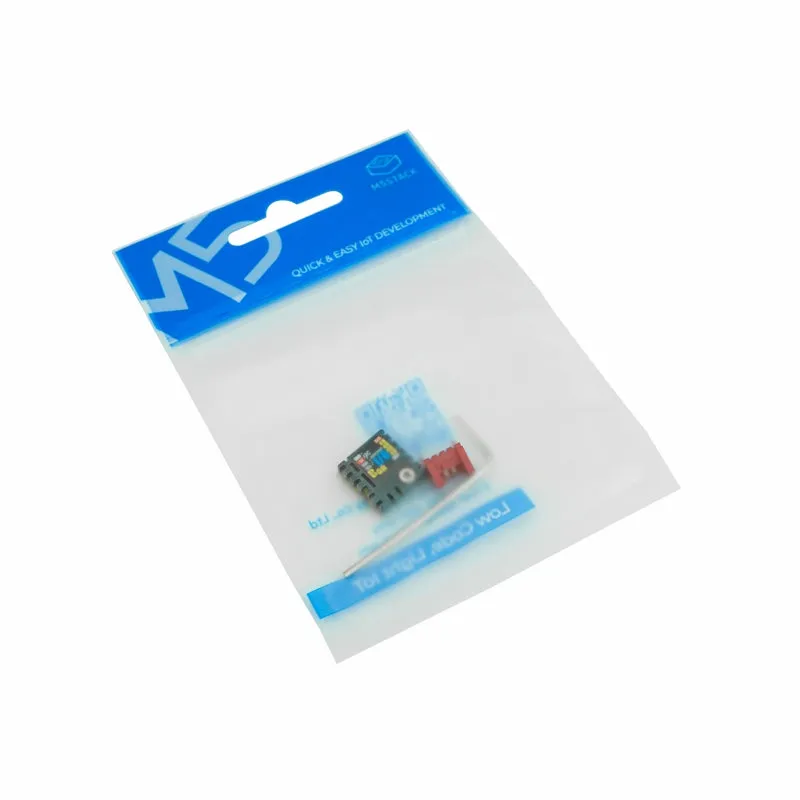

| Package Size | 93 x 138mm |
